Vicem Ha Tien Portland Blended Cement Industrial Appliance PCB40 from Long An Grinding Terminal

The listed cement products (Vicem Ha Tien Portland Cement Blended PCB40, Vicem HaTien General Purpose Cement PCB40, Vicem Ha Tien Portland Cement Blended Green PCB40, Power Cement ) are manufactured with the same formulation and production process at Long An grinding terminal. Differences between products are limited to packaging types, commercial names, and target applications. All relevant technical and environmental data are identical, and any variations are less than 1%

Product Description

I. Factories :

1. Kien Luong Plant

Location: Route 80, Lo Bom Block, Kien Luong district, Kien Giang province, VietNam (An Giang, Vietnam) .

Manufacturing Capacity:

Line 1: 730,000 tons of cement/year, 1 million tons of clinker/year

Line 2: 1,100,000 tons of cement/year, 1.5 million tons of clinker/year.

Clinker productionplantwith on-site supply and Long An grinding terminal

Technology: POLYSIUS (France) provided line 1 equipment, which has been operatingsince1991. BEDESCHI (Italy), POLYSIUS (Germany), PFEIFFER (Austria), HAVER & BOECKER (Germany), and Areva (Singapore) provided line 2 equipment, which has been operatingsince2012.

Loading Capacity: Waterway: 6,200 tons of cement/day & Roadway: 1,000 tons of cement/day

2. Long An Grinding Terminal : Clinker source is provided by Kien Luong plant Location: Long Dinh Industrial Zone, Can Duoc District, Long An province, VietNam( TayNinh, Vietnam). Manufacturing Capacity: 1,000,000 tons of cement/year Technology: PFEIFFER (Austria) Loading Capacity: Waterway: 2,000 tons of cement/day & Roadway: 3,000 tons of cement/day

II. Product identification & specification of cement :

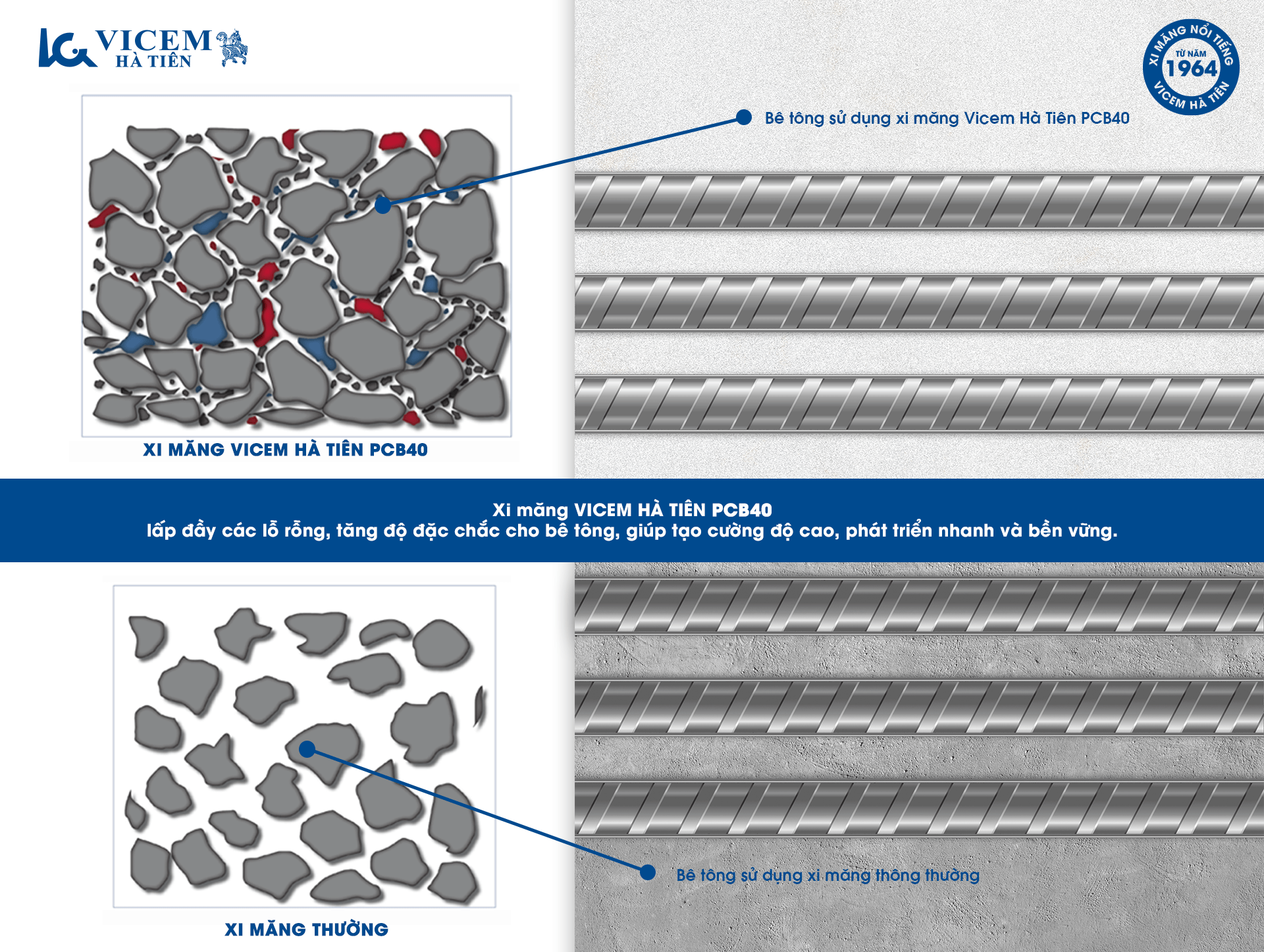

Vicem Ha Tien Portland Blended Cement industrial appliance PCB40 used to produce concrete with good workability and high early strength which is applied in big projects and constructions.

Product name

Product description

Product identification

UN CPC code:

Vicem Ha Tien Portland Blended Cement Industrial Appliance PCB40

Vicem Ha Tien Portland Blended Cement industrial appliance PCB40 used to produce concrete with good workability and high early strength which is applied in big projects and constructions.

VicemHa Tien Portland Blended Cement industrial appliance PCB40 is used to producehighquality concrete in concrete batching plants, precast & pre-stressed concrete factories,centrifugal concrete piles factories, concrete brick or tile factories…

TCVN 6260:2020 PCB40, EN 197-1:2011 (CEMII/A-M)

37440

III. Technical Specifications:

Parameter	Unit	Cement PCB
SO3	%	2.40
LOI	%	3.40
IR	%	5.75
Blaine	cm2/g	3,383
Initial setting time	min.	138
Final setting time	min.	169
3D Strength	Psi	5,251
28D Strength	Psi	8,161

Data Source:

Additional information

Biogenic CO2e (A1-A3)	– kg
Total Carbon ( Fossil) ( kg CO2e / declared unit)	– kg CO2e / kg
-- Manufacturing (A1-A3)	– kg
--Transport to Site (A4)	– kg
-- On-site Installation (A5)	– kg
-- Use & Maintenance (B1-B5)	– kg
-- End of Life (C1, C3, C4)	– kg
Circularity / Recyclability	—–
-- Recycled content ( Post & Pre - consumer, %)	– %
-- Recyclable Content	– %
-- Re-use Potential	– %
-- Energy Recovery Possibility	– %
Water use (litres/ declared unit)	– L/ kg
Ozone Depletion Potential	– mg CFC-11eq
Porosity (%)	– %
Density	– kg/m3
Compression Strength	– MPa
